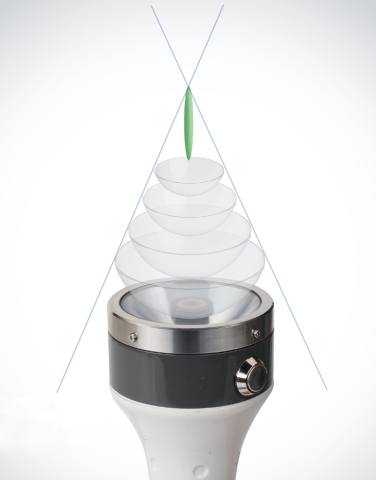

Magnetic type can concentrate the high shock-wave energy on a lesion with small pain resulting in higher treatment effect
DANAT concentrates the high shock-wave envergy on a lesion within a short time reducing the pain of operation and enhancing the treatment effect.
Regarding the maintenance cost that the uses have concentrated on, the shock-wave resource of DANAT boasts the longest life cycle in the world and will suggest new solution sith evolutionary reduction of the running cost oto users.
Shock-wave resource developed with 10years efforts.

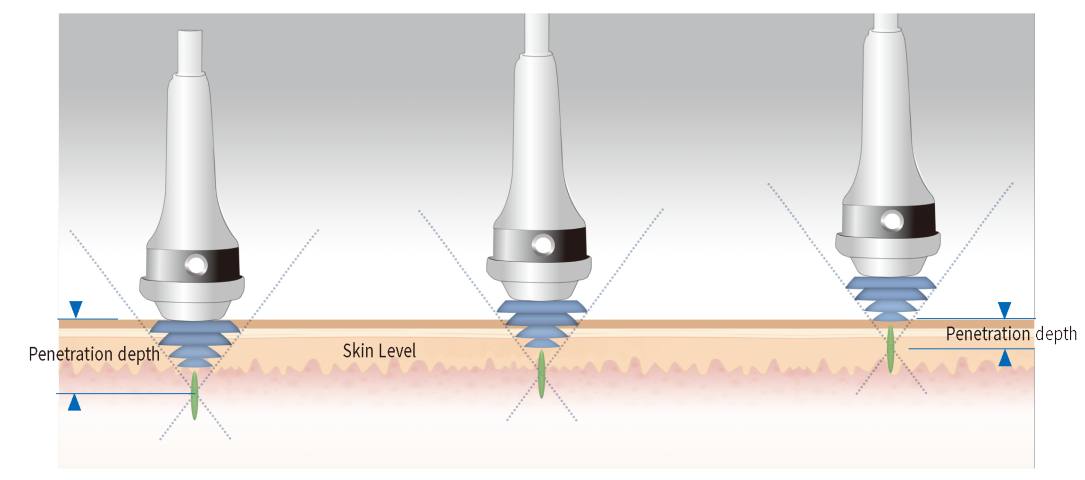

The wide-focal spot size can be treated to make the treatment effective.
| Indication | Pad Used | Penetration Depth | Energy Level | Energy Density (mJ/mm2) | Number of shock waves |
|---|---|---|---|---|---|
| Epicondylitis | PAD15 | 0~30mm | E2 - E5 | 0.068 - 0.126 | 1000 |
| Plantar fasciitis | PAD15 | 0~30mm | E7 - E10 | 0.187 - 0.275 | 1200 |
| Calcific tendinitis | PAD30 | 15~45mm | E7 - E10 | 0.187 - 0.275 | 1500 |
| Frozen Shoulder | PAD30 | 15~45mm | E7 - E10 | 0.187 - 0.275 | 1200 |
| Patellar tendinitis | PAD30 | 15~45mm | E8 - E12 | 0.215 - 0.345 | 1200 - 1500 |
| A pain in the lower back | PAD45 | 30~60mm | E8 - E12 | 0.215 - 0.345 | 1000 - 1500 |
| Generation principle | Slight vibration for the Magnetic |
| Reflector, Formula | Reflection for the hemisphere |
| Reflection medium | Water reflection |
| Penetration depth | 0mm(min) ~ 600mm(max) |
| Focal range | 2.7 X 2.7 X 60mm |
| Peak pressure | 43MPa |
| Focal total energy | 3mJ |
| Maximum Positive energe flow density | 0.42mJ/mm |
| Power consumption | 650VA |
| Power supply | 220VAC 60Hz |
| Directive for medical products | Class I, TYPE B |
| Safety | IEC 60601-1 |

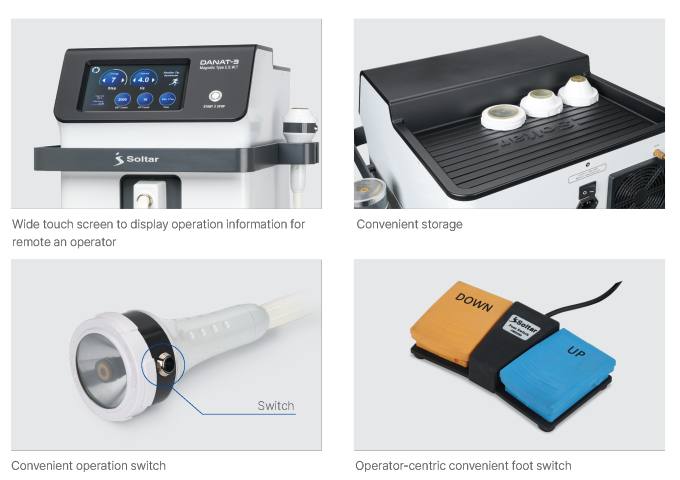

| Interface | Touch screen |
| Control | Microprocess |

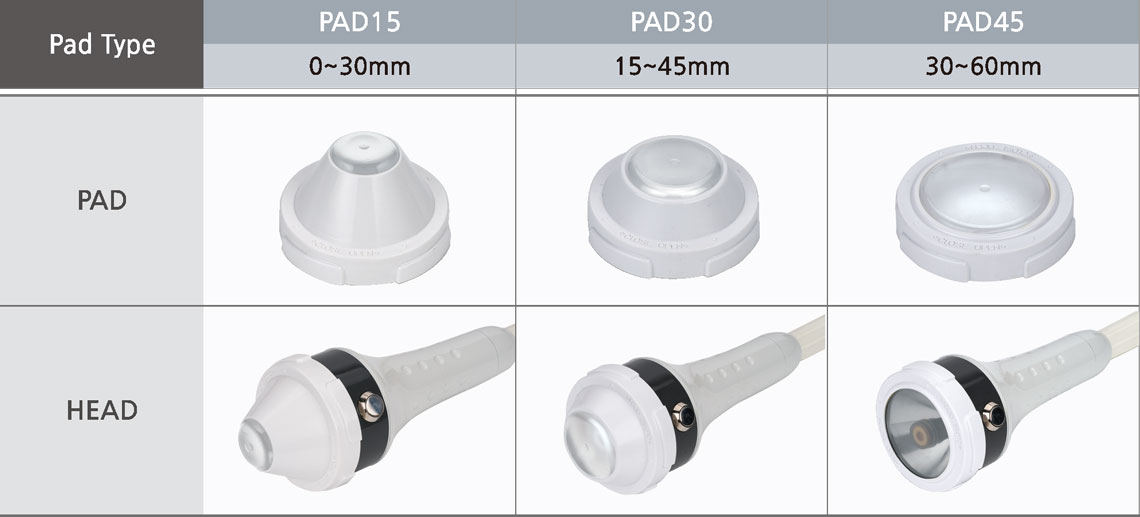

| Therapy touch pad | 3 kinds of pads in depth |
| Gross weight | (Main unit: 45kg, Cart: 23kg, Head for the therapy: 900g) |
