마그네틱 방식의 충격파는 안정적이고 Focusing이 우수하고 시술이 편리합니다.
이 방식의 단점인 낮은 에너지 레벨을 기술개발을 통한 고출력, 고효율의 충격에너지로 끌어올리는 것이 설계상의 가장 큰 과제였습니다.
한국 솔타의 HAEMIL은 안정적인 충격에너지로 환자 치료기피율을 낮추고, 높은 신뢰성과 세심한 편리성을 완성시킨 체외 충격파 통증 치료기입니다.
Magnetic type can concentrate the high shock-wave energy on a lesion with small pain resulting in higher treatment effect
DANAT concentrates the high shock-wave energy on a lesion within a short time reducing the pain of operation and enhancing the treatment effect.
Regarding the maintenance cost that the uses have concentrated on, the shock-wave resource of DANAT boasts the longest life cycle in the world and will suggest new solution with evolutionary reduction of the running cost to users.
Shock-wave resource developed with 10 years efforts

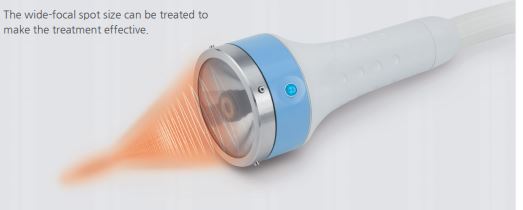

The wide-focal spot size can be treated to make the treatment effective.
| Pad Type | ||
| pad 15 | pad 30 | pad 45 |
| 0~30mm | 15~45mm | 30~60mm |
|
|
|
|
|
|
| Indication | Pad Used | Penetration Depth | Energy Level | Energy Density (mJ/mm2) | Number of shock waves |
|---|---|---|---|---|---|

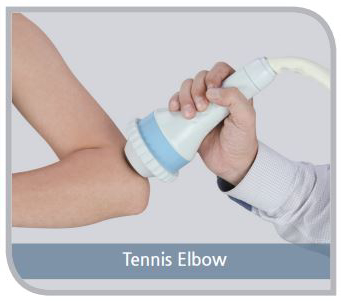

| Tennis Elbow and Golfer’s (Epicondylitis radialis and ulnaris) | PAD15 | 0~30mm | E2 - E5 | 0.068 - 0.126 | 1000 |

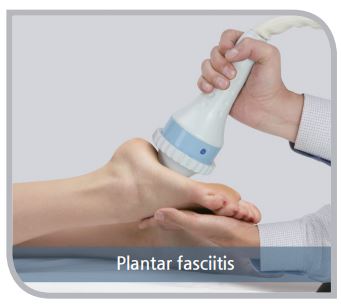

| Plantar fasciitis | PAD15 | 0~30mm | E7 - E10 | 0.187 - 0.275 | 1200 |

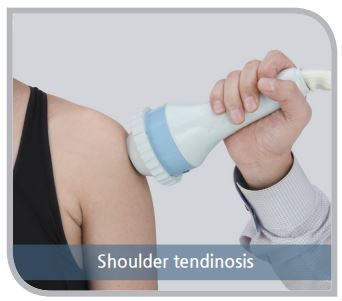

| Tendinosis calcarea (Calcified Shoulder) | PAD30 | 15~45mm | E7 - E10 | 0.187 - 0.275 | 1500 |

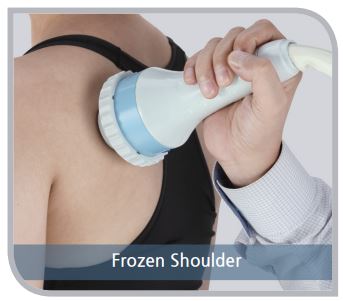

| Frozen Shoulder | PAD30 | 15~45mm | E7 - E10 | 0.187 - 0.275 | 1200 |

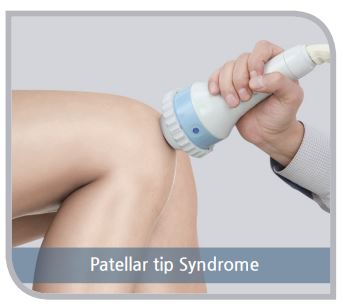

| Patellar Tip - Syndrome | PAD30 | 15~45mm | E8 - E12 | 0.215 - 0.345 | 1200-1500 |

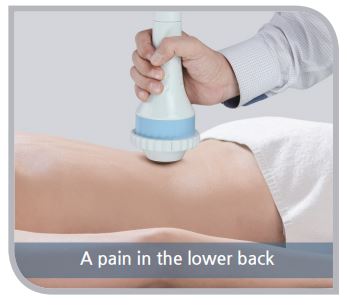

| A Pain in the lower back | PAD45 | 30~60mm | E8 - E12 | 0.215 - 0.345 | 1000-1500 |
| Generation principle | Slight vibration for the Magnetic |
| Reflector, Formula | Reflection for the hemisphere |
| Reflection medium | Water reflection |
| Penetration depth | 0mm(min)~58mm(max) |
| Focal range | 3 × 3 × 30mm |
| Peak pressure | 43Mps |
| Focal total energy | 3mJ |
| Maximum Positive energy flow density ² | 0.42mJ/mm |
| Probe aperture angle | : 58° |
| Power consumption | 650VA |
| Power supply | 220VAC 60 Hz |
| Directive for medical products | Class I, TYPE B |
| Safety | IEC 60601-1 |

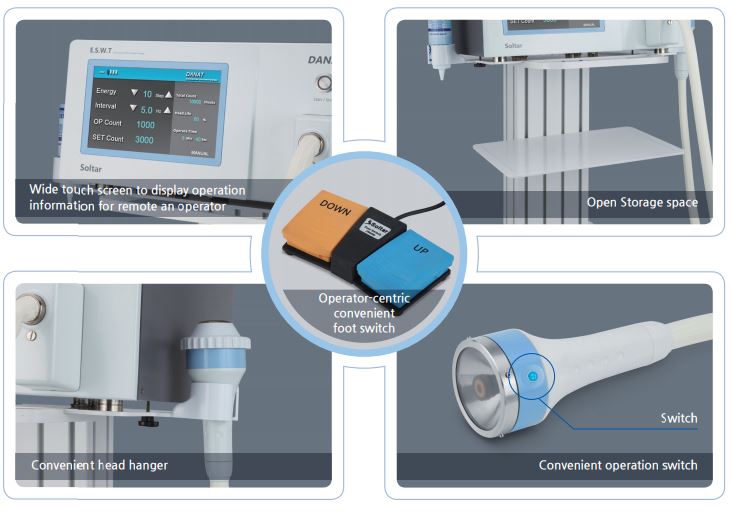

| Interface | Touch screen |
| Control | Microprocess |
| Therapy touch pad | 3 kinds of pads in depth |
| Gross weight | (Main unit : 43Kg cart : 33Kg Head for the therapy : 900g) |
