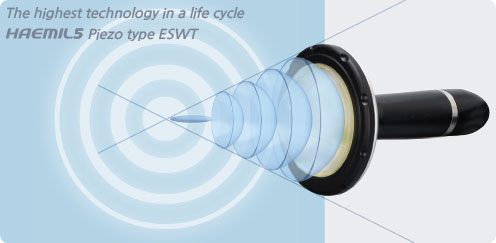

The shockwave energy is generated by numerous piezo-elements mounted in the applicator.
The piezo-elements are densely arranged and precisely aligned with the therapy focus.
When excited by a high-voltage pulse, the piezo-elements expand briefly along with their axis creating a shockwave.
The piezo system is an extremely robust and low maintenance technology.
A characteristic of piezoelectric shockwaves is that it can be precisely focused to achieve it's maximum efficacy at the focus of the therapy.

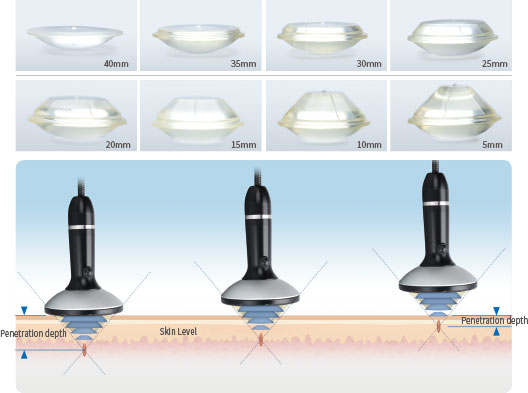

The penetration depth is defined using exchangeable gel pads of different thicknesses.
Indication | Pad Used | Penetration Depth | Energy Level | Energy Density (mJ/mm2) | Number of shock waves |
---|---|---|---|---|---|
Tennis Elbow and Golfer’s (Epicondylitis radialis and ulnaris) |

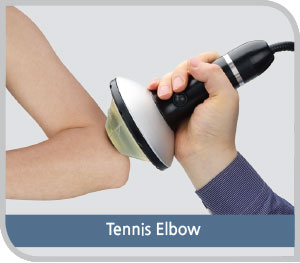

PAD5,10,15 | 0~18mm | 1~3 | 0.068 - 0.126 | 1200 |

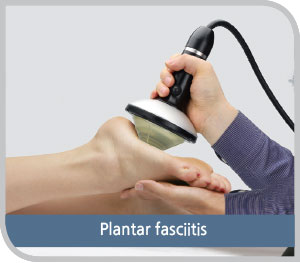

Plantar fasciitis | PAD15,20,25 | 12~28mm | 4~8 | 0.187 - 0.275 | 1500 |
Tendinosis calcarea (Calcified Shoulder) |

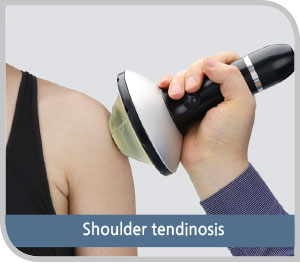

PAD15,20,25 | 12~28mm | 4~8 | 0.187 - 0.275 | 1700 |

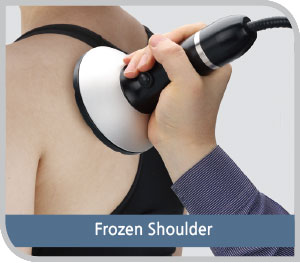

Frozen Shoulder | PAD20,25,30 | 17~33mm | 8~10 | 0.215 - 0.345 | 1500 |

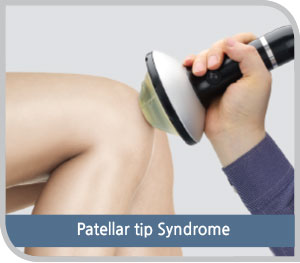

Patellar Tip - Syndrome | PAD20,25,30 | 17~33mm | 10~15 | 0.340 - 0.505 | 1200-1500 |
A Pain in the lower back | PAD35,40 | 32~43mm | 16~20 | 0.500 - 0.649 | 1200-1500 |
Generation principle | Piezo-Electric |
Directive for medical products | Class I, TYPE B |
Power supply/Power Consumption | 220VAC 60Hz/130VA |
Penetration depth | 0mm(min) ~ 43mm(max) |
Peak pressure | 89.98Mps |
Maximum Positive energy flow density | 0.649mJ/mm2 |

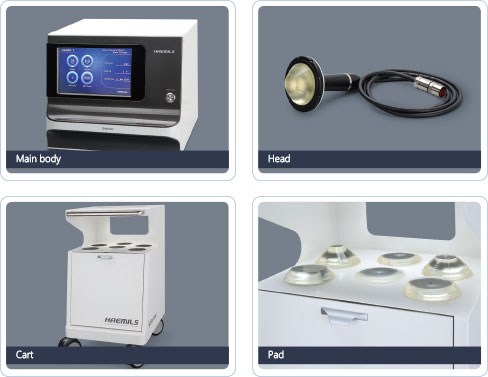

Gross weight | Main unit(27kg), cart(24kg), Head(1.3kg) |
Size | 400(W) x 452(D) x 1020(H) |
